Heat Shield

A heat shield is a protective system designed to prevent a spacecraft or other vehicle from being damaged by extreme temperatures during atmospheric entry.

Heat shields protect spacecraft, equipment, and astronauts from the intense heating generated as a vehicle travels through an atmosphere at high speed.

Heat shields are used on crewed spacecraft, robotic sample-return missions, and planetary probes entering other worlds' atmospheres.

Key Facts

• Primary purpose: Protect a vehicle from extreme aerodynamic heating.
• Main heat sources: Compression and heating of gas around a rapidly moving vehicle, alongside heat transfer from the surrounding flow.
• Common materials: Ablative materials, ceramic tiles, and high-temperature insulating materials.
• Common applications: Atmospheric reentry, planetary landings, and sample-return missions.
• Notable examples: SpaceX Dragon, NASA’s Orion spacecraft, and the Mars Perseverance rover.

What Is a Heat Shield?

A heat shield protects a vehicle from the intense thermal conditions encountered during atmospheric entry. When a spacecraft enters an atmosphere at high speed, the gas surrounding it becomes extremely hot, exposing its exterior to substantial heat transfer.

Heat shields manage this energy through specialized materials and engineering. Some shields absorb heat and gradually erode, while others insulate the vehicle and radiate heat away from its surface.

Two major approaches are used in spacecraft thermal protection:

• Ablative heat shields: Materials gradually decompose, char, and erode, carrying heat away from the vehicle. These are commonly used on capsules returning from space.

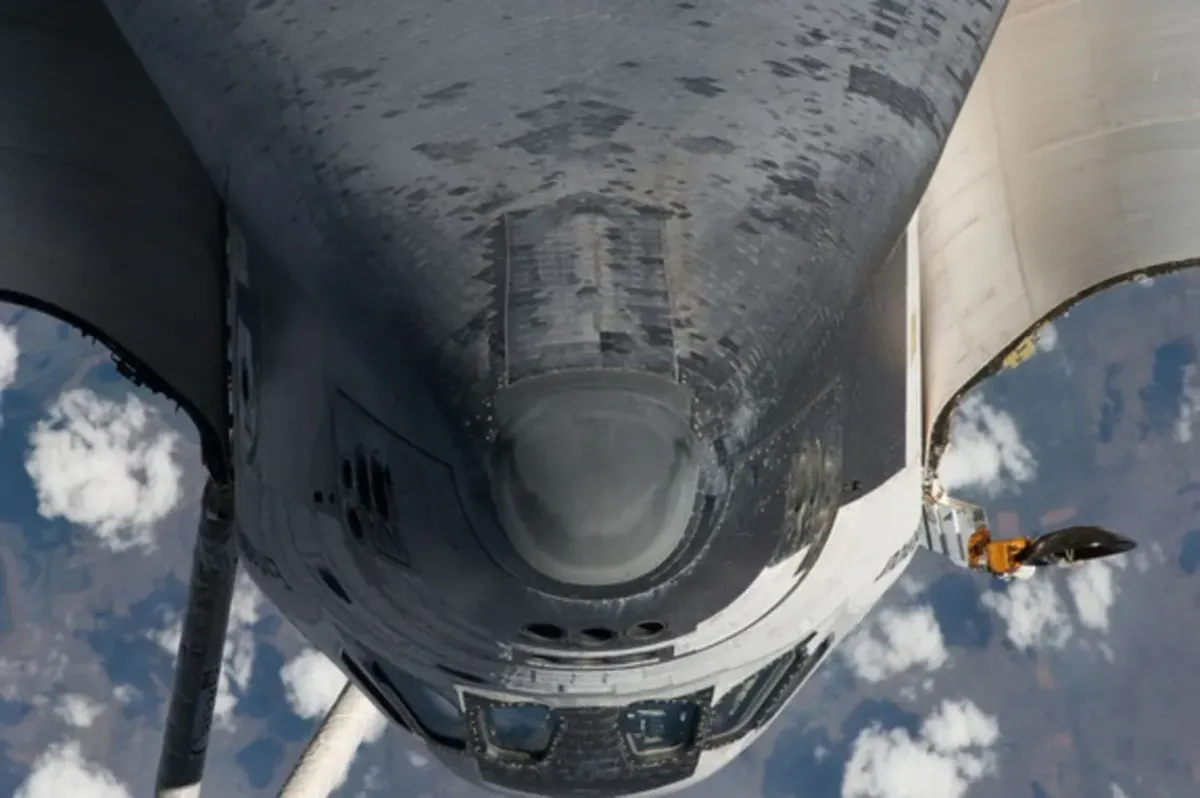

• Reusable thermal protection systems: Materials such as ceramic tiles and heat-resistant panels insulate the vehicle and withstand repeated heating cycles, as long as they are properly maintained.

The appropriate design depends on the vehicle, its speed, the atmosphere it enters, and whether the shield must be used once or survive repeated flights.

What Are Heat Shields Used For?

Heat shields are used in several types of aerospace missions, including:

• Crewed spacecraft: Protecting astronauts during atmospheric reentry.
• Cargo capsules: Safeguarding equipment and supplies returning from orbit.
• Planetary probes: Protecting spacecraft entering planetary atmospheres such as Mars.
• Sample-return missions: Preventing collected material and its return capsule from being destroyed during Earth entry.
• Reusable spacecraft: Protecting vehicles designed to return through an atmosphere and fly again.

NASA’s Perseverance rover, for example, used a heat shield during its entry into the Martian atmosphere before deploying its parachute and completing its descent to the surface.

Why Do Heat Shields Matter?

Heat shields are critical because atmospheric entry can expose spacecraft to severe heating that would destroy unprotected structures and endanger their occupants.

A successful design must balance thermal protection, structural strength, mass, and reliability. Adding protection increases spacecraft mass, which can raise launch and propulsion requirements. Engineers must therefore develop systems that can survive expected heating without making the vehicle unnecessarily heavy.

Heat shields are also essential to the future of human exploration. Returning crews from the Moon or bringing samples back from distant destinations requires thermal protection designed for each mission's specific speeds and conditions.

Related Terms

• Reentry — The process of a spacecraft returning through Earth’s atmosphere.
• Atmospheric Drag — The force that resists an object’s motion through an atmosphere.
• Aerodynamics — The study of how gases interact with moving objects.
• Low Earth Orbit (LEO) — The orbital region where many spacecraft operate before returning to Earth.
• Delta-v — A measure of the change in velocity required to perform a maneuver.
• Thermal Protection System (TPS) — Materials and structures designed to protect a vehicle from extreme temperatures.
• Sample Return Mission — A mission designed to collect material from another location and return it for analysis.

In Short

A heat shield is a protective system that prevents spacecraft from suffering destructive heating during atmospheric entry. Using ablative materials or reusable thermal protection, heat shields enable spacecraft recovery and planetary exploration.
